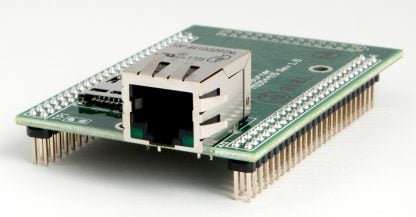

MOD54415 LC Development Kit

NNDK-MOD54415LC-KIT IOT Development Kit
MOD54415-100IR-2T

$199.00

Add Ethernet connectivity to an existing product, or use it as your products core processor.

The NetBurner Ethernet System-on-Module is a device containing everything needed for design engineers to add network control and to monitor a company’s communications assets. For a very low price point, this module solves the problem of network-enabling devices with 10/100 Ethernet, including those requiring digital, analog and serial control.

This product is now in its END OF LIFE stage. Please consider the MODRT1171, MODM7AE70, or upcoming single-port MODRT1171S as a suitable replacement. For more information, please see the MCF5441x End of Life Notice.

*** NON-CANCELLABLE / NON-RETURNABLE ***

In Stock

SKU: NNDK-MOD54415LC-KIT Category: Tags: ,

Description

Icon

MOD5441X Embedded Ethernet System on Module Datasheet

990.26 KB 37766 downloads

Datasheet for our popular MOD5441X embedded system on module. The datasheets provides data and specifications for our single and dual jack models, MOD54415 and MOD54417, respectively. Electrical, mechanical and interface details.

Download

Included in the Package

  • 1 Platform Hardware
  • 1 Development Board
  • 1 Quick Start Guide
  • 1 NNDK Card with Platform Serial Number
  • 1 Serial Cable
  • 1 Blue CAT5 Patch Cable
  • 1 USB Cable
  • 1 Year of Software and Tool Updates
  • 6 Months of Technical Support

Ready to build products?

Take a look at volume pricing for the MOD54415. Click here for additional product information

NOTE: These kits are USB powered (with the included USB cable), but can also be powered by a power adapter which can be purchased below: International Adapter or US Adapter

Specifications

Performance and Memory
Processor Family

ColdFire

Clock Speed

250 MHz

Flash

32 MB

DDR2 RAM

64 MB
Device Connectivity
1-Wire Interface

Yes

Analog to Digital (ADC) Channels

8

CAN

2

Digital to Analog (DAC)

2

Ethernet

10/100 Mbps (with IEEE1588)

External Address Bus

16 bit

External Data Bus

16 bit

Flash Card Support (SDHC/SPI)

On Board

GPIO

42, plus 2 additional inputs

I2C

4

SPI

3

Timer I/O

4

UART

8
Additional Peripherals
MicroSD Connector

Yes

Pulse Width Modulator (PWM) Channels

5
Module Properties
Dimensions

2.95" x 2.00" (inches)

DC Input Voltage

3.3V @ 410mA typical

Temperature Range

Industrial (-40°C to 85°C)

Brand

NetBurner
More
Weight

2 lbs

Documents and Downloads

MOD5441X Online Guides

MOD5441X Quickstart Guide

NNDK 3.X Quickstart Guide

NNDK 2.X Quickstart Guide

NNDK 3.X Documentation

MOD5441X Datasheet

Icon

MOD5441X Embedded Ethernet System on Module Datasheet

990.26 KB 37766 downloads

Datasheet for our popular MOD5441X embedded system on module. The datasheets provides data and specifications for our single and dual jack models, MOD54415 and MOD54417, respectively. Electrical, mechanical and interface details.

Download

    MOD5441X Documents
