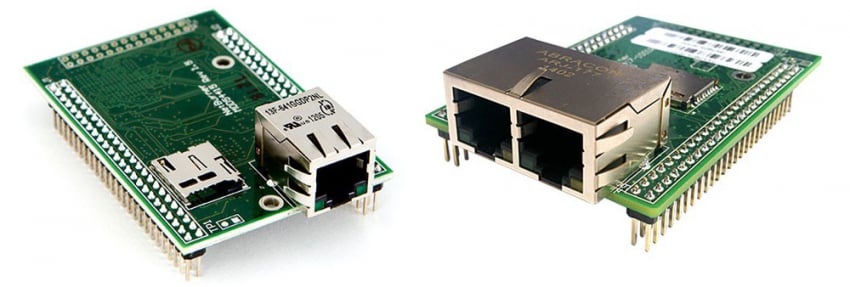

MOD5441X System-on-Module

MOD5441X SOM

$106.00 – $139.00

Single & Dual Ethernet System-on-Module

Add Ethernet connectivity to an existing product, or use it as your products core processor.

The NetBurner Ethernet System-on-Module is a device containing everything needed for design engineers to add network control and to monitor a company’s communications assets. For a very low price point, this module solves the problem of network-enabling devices with 10/100 Ethernet, including those requiring digital, analog and serial control.

Just starting out? Try our MOD54415 or MOD54417 Development Kits!

Not seeing exactly what you need with this module, or are you looking for a custom solution? Check out our OEM Design Services and let us design the perfect part for you.

SKU: N/A Category: Tags: ,
All of our hardware is RoHS compliant, covered by our
1 Year Warranty and Made in the USA.

Description

Key Points

  • Use as a high-performance single board computer
    or add Ethernet connectivity to a new or existing
    design
  • Industrial temperature range (-40°C to 85°C)
  • MOD54417 can function as a switch or as two
    independent ports, each with its own MAC address
  • Customize with development kit

Features

  • ColdFire 5441x microprocessor at 250MHz
  • 32MB Flash Memory
  • 64MB DDR2 RAM
  • Up to two 10/100Mbps Ethernet
  • 8 UARTs, 4 I2C, 2 CAN, 3 SPI, and 1-Wire® support
  • SD/MMC and MicroSD flash card ready
  • 42 digital I/Os and 2 additional digital inputs
  • 16-bit address and data bus with 5 chip selects
  • Eight 12-bit analog-to-digital converters (ADC)
  • Two 12-bit digital-to-analog converters (DAC)
  • Five pulse width modulators (PWM)
  • Companion development kit

The following is available with the development kit:

  • Customize any aspect of operation including web pages, data filtering, or custom network applications
    Development software: NB Eclipse IDE, Graphical debugger, deployment tools, and examples
    Communication software: TCP/IP stack, HTTP web server, FTP, E-mail, and flash file system
    System software: uC/OS RTOS, ANSI C/C++ compiler and linker

Product Datasheet

Icon

MOD5441X Embedded Ethernet System on Module Datasheet 0.00 KB 5306 downloads

Datasheet for our popular MOD5441X embedded system on module. The datasheets provides...
Download

Product Posts

NetBurner In Flight

NetBurner in Flight

Ground and airborne tracking platforms maintain a communications link “For many networked consumer products, a Raspberry Pi is a popular option; however, for timing-critical or

Read More »
April 25, 2018

Not the right module? Compare all modules by feature.

Specifications

Performance and Memory
Processor Family

ColdFire

Clock Speed

250 MHz

Flash

32 MB

DDR2 RAM

64 MB
Device Connectivity
Ethernet

10/100 Mbps, Two 10/100 Mbps

UART

8

SPI

3

Analog to Digital (ADC)

8

CAN

2

Digital to Analog (DAC)

2

External Data Bus

16 bit

External Address Bus

16 bit

GPIO

42, plus 2 additional inputs

I2C

4

Timer I/O

4

SD/MMC Flash Card Ready

Yes

MicroSD Flash Card Ready

Yes

1-Wire Interface

Yes
Additional Peripherals
Pulse Width Modulator (PWM)

5
Physical Properties
Dimensions

2.95" x 2.00" (inches)
Module Properties
DC Input Voltage

3.3V @ 520mA typical

Temperature Range

Industrial (-40°C to 85°C)

Brand

NetBurner
More
MOD5441X Versions Available

, , , , ,

Weight .1 lbs

Documents and Downloads

MOD5441X Online Guides

MOD54415 Quickstart Guide

MOD54417 Quickstart Guide

NNDK 3.X Quickstart Guide

NNDK 2.X Quickstart Guide

NNDK 3.X Documentation

MOD5441X Docs

Icon

MOD5441X Embedded Ethernet System on Module Datasheet 0.00 KB 5306 downloads

Datasheet for our popular MOD5441X embedded system on module. The datasheets provides...
Download

Icon

PCN014-MOD5441x Assembly modifications for MOD54415 revision 2.3, MOD54417 revision 1.6 0.00 KB 4 downloads

Implementation Date: November 16, 2022 Reference: Assembly modifications for MOD54415...
Download
Icon

PCN 013-MOD5441X Additional flash memory chip qualification 0.00 KB 2 downloads

Implementation Date: November 16, 2022 Reference: Additional flash memory chip qualification...
Download
Icon

PCN 012 Ethernet RJ-45 jack modification 0.00 KB 8 downloads

PCN 012 Notice Date: November 16, 2022 Reference: Ethernet RJ-45 jack modification NetBurner...
Download
Icon

PCN 009 - Additional Flash Memory Chip Qualification 0.00 KB 382 downloads

...
Download
Icon

MOD5441X Product Change Notice 0.00 KB 1418 downloads

...
Download
Icon

MOD Mechanical Diagram (100 Version) 0.00 KB 2619 downloads

...
