Description

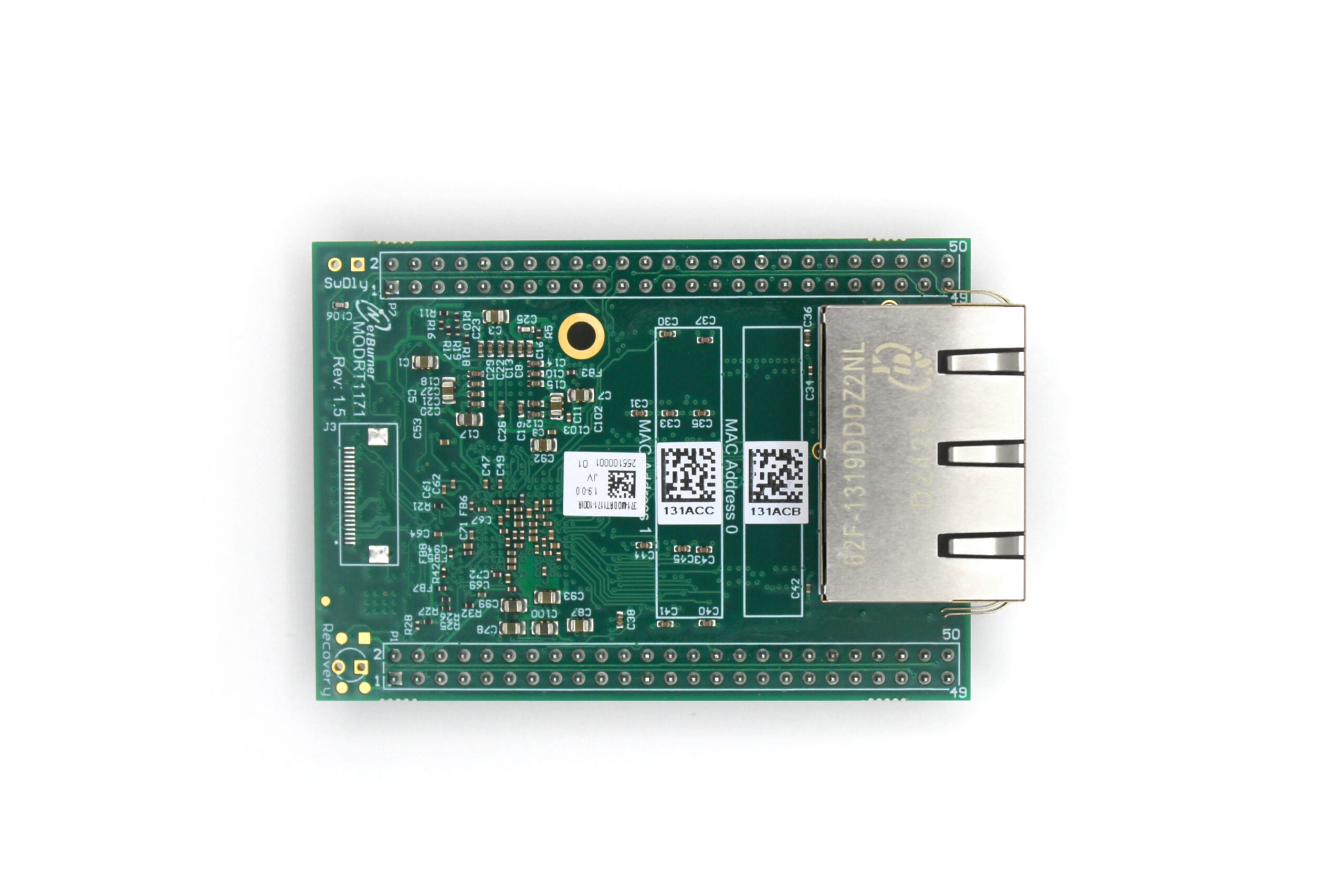

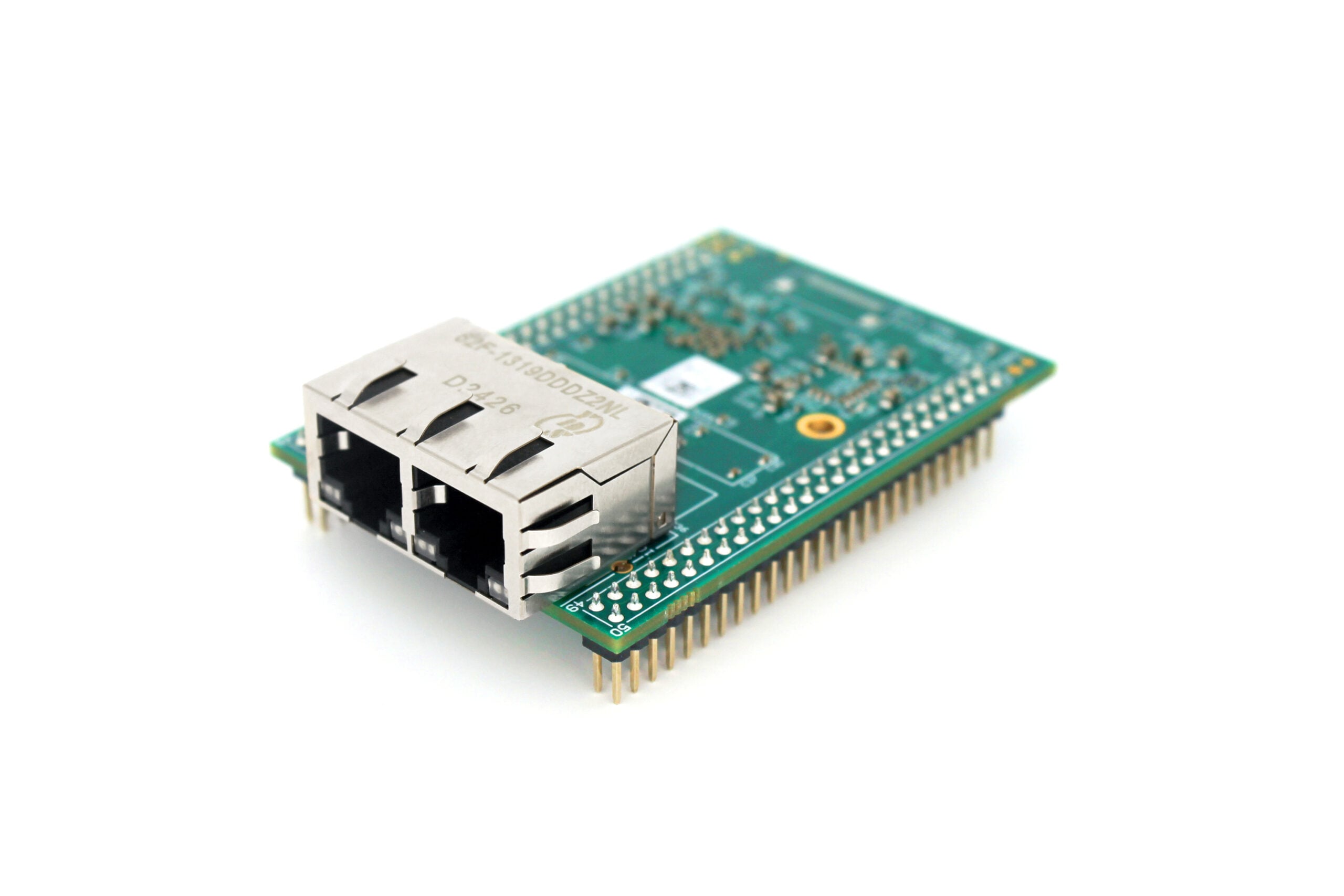

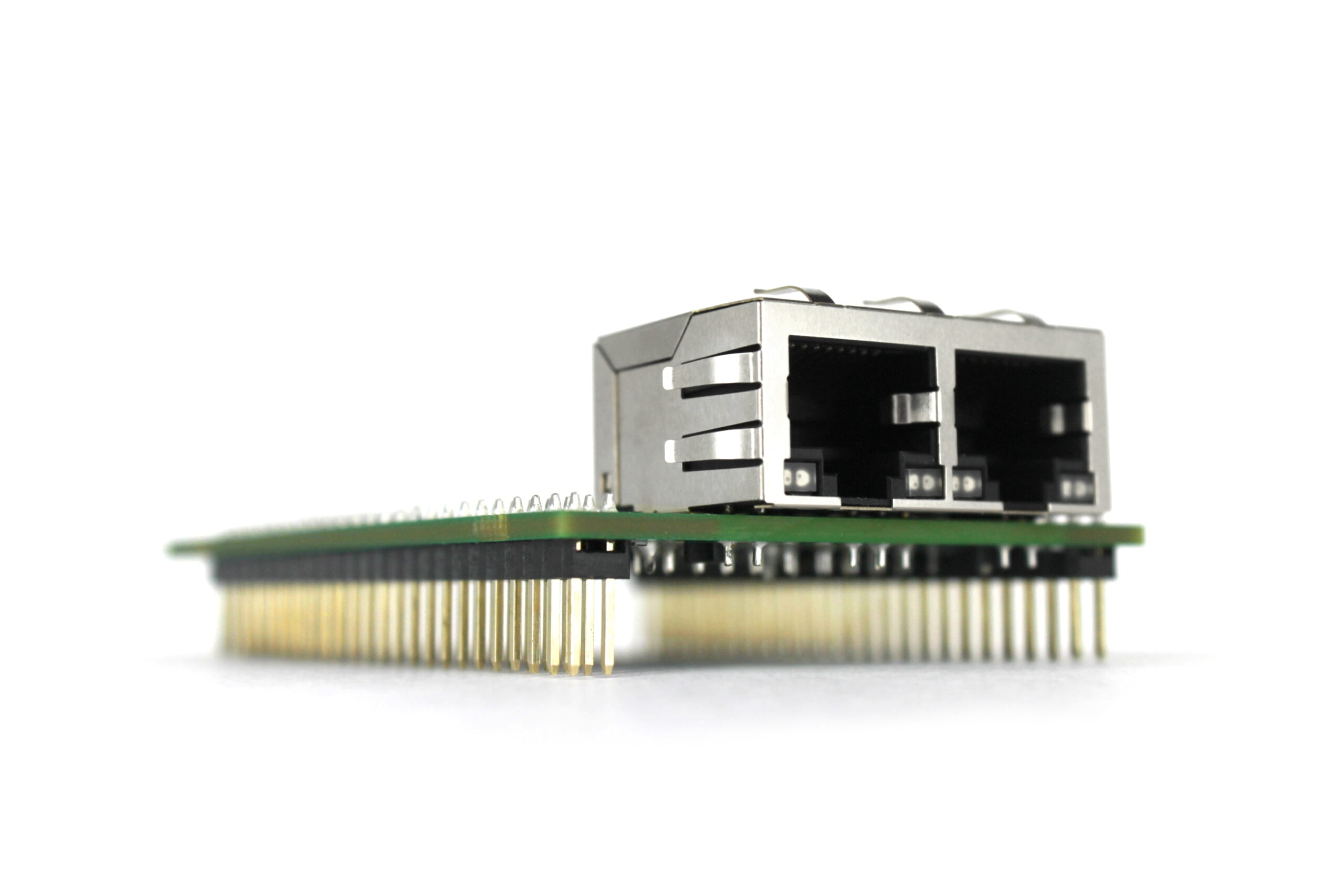

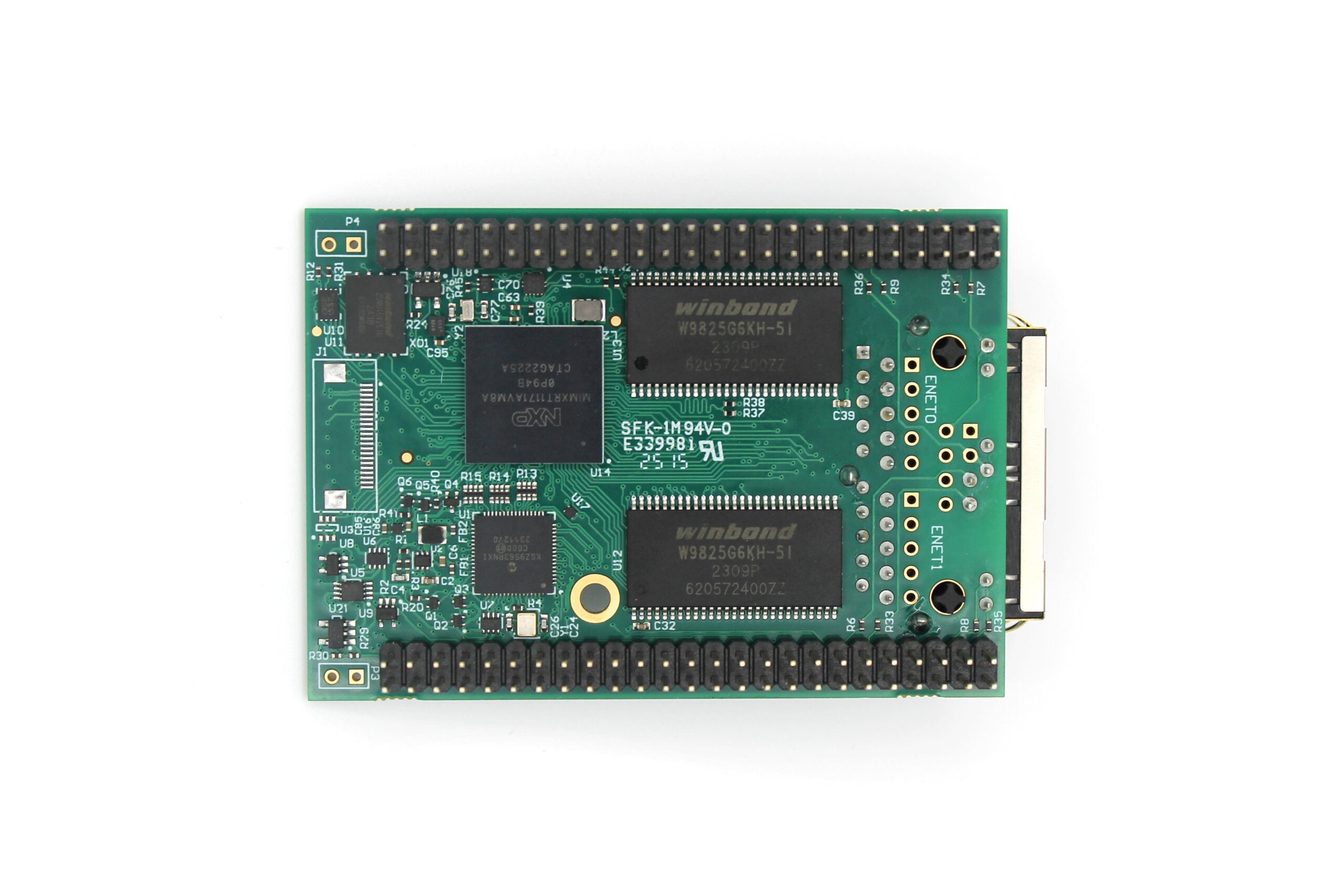

NXP i.MX RT117x Embedded System-on-Module MODRT1171
Need a high-performing and reliable ARM module for secure embedded automation and industrial IoT applications? This powerful ARM® Cortex® M7 embedded system-on-module (SOM) solves the problem of securely network-enabling devices with dual Gigabit Ethernet, including those requiring SSL/TLS, machine-to-machine (M2M) protocols, digital, analog and serial control, and much more. The product can also be used as an edge node microcontroller, edge processor or IoT gateway.
Flexible RT117x ARM Microcontroller
The i.MX RT series of crossover MCUs are ideally suited to the workloads NetBurner customers prioritize: the right balance of I/O, connectivity, power, and industrial capability in a powerful package ready to drop into your project.
Key Features
- NXP i.MX MIMXRT1171, 800MHz, ARM M7, Industrial Temperature
- Single or Dual Gigabit Ethernet, configurable as interfaces or switch
- Additional 10/100 Ethernet available
- IEEE 1588 PTP and 802.1Q VLAN capable
- Flash: 128MB
- SRAM: 2MB on processor
- HyperRAM: 32MB
- Floating Point Unit (FPU)
- Two USB Controllers (PHY)
- 11 UARTs up to 20Mbps
- Up to 88 GPIO
- 2 SDHC external flash storage interfaces and 1 MicroSD connector onboard
- 4ch PDM microphone, 2ch MQS audio output, S/PDIF, 2 SAI
- Up to 20 analog-to-digital converters (ADC)
- 1 digital-to-analog converter (DAC)
- Standard NetBurner Module form factor
Try out our MODRT1171 development kit! The best way to get started.
Read the ARM® Embedded System-on-Module MODRT1171 Product Announcement or Press Release!
Timers and PWMs
- Five General Programmable Timers (GPT) – Four with an external clock, 2 capture inputs, 3 compare outputs.
- Two Quad-Channel Periodical Interrupt Timers (PIT) – 32-bit timers with periodical interrupt generation (1 chainable 64-bit timer.)
- Four Quad Timers (QTimer) with a total of 6 I/O signals – Four-channel 16-bit chainable timers for each.
- Four FlexPWMs – Quad 16-bit resolution PWM, A/B/X capture/compare. 48 total interruptible time counts. 28 total I/O.
- Four Quadrature Encoder/Decoders
- Three Watchdog Timers
- And more! See Specifications and the datasheet PDF under Documents and Downloads for details.
FlexIO module
The MODRT1171’s 32-channel FlexIO module can be configured as I2C, SPI, UART, I2S, 68K 8080 parallel bus, or PWM/ Waveform Generation. It’s a generic serial to parallel or parallel to serial interface that can even operate as a limited state machine.
And much more:
See the data sheet above for complete information on this powerful, affordable new module!
Design and Configure Pinouts with our Convenient New Tool:
The MODRT1171 is so flexible, most pins can be used for many functions. In order to save you the trouble of digging through tons of documentation (and to give you easy drop-in schematic symbols!) we’ve made an easy Pin Configurator tool. You can look up the various functions for each pin, customize each pin’s function, and download C++ initialization code or a KiCad symbol for your device:
More on the ARM® RT1171 CPU used in this module can be found here:
