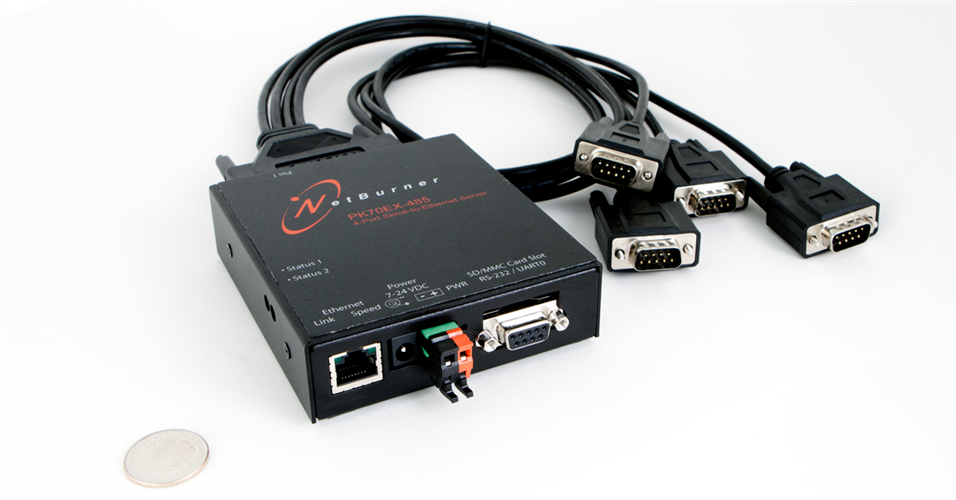

PK70 EX 485 Development Kit

$399.00

Access Four Serial Ports over Ethernet!

NetBurner’s RS-485 Serial to Ethernet Devices network-enable up to 4 DB9 serial devices out of the box – no programming or development is required. Development Kit include the standard platform hardware with much more to help get applications off the ground fast. The hardware is pre-programmed to convert your serial data to Ethernet, enabling communication with the serial device over a network or the Internet.

In Stock

Description

Icon

PK70 EX 485 Datasheet 1023 downloads

... (Read More)

serial-to-ethernet-notional

Included in the Package

  • 1 Platform Hardware
  • 1 Power Adapter (International or US Version)
  • 1 Quick Start Guide
  • 1 NNDK Card with Platform Serial Number
  • 1 DB37 to 4x DB9 Adapter Cable
  • 1 Blue CAT5 Patch Cable
  • 1 NetBurner Platform Hardware Label
  • 1 Year of Software and Tool Updates
  • 6 Months of Technical Support

Specifications

Performance and Memory
Processor Family

ColdFire

Clock Speed

147.5 MHz

Flash

4 MB

SDRAM

8 MB

Device Connectivity
Ethernet

10/100 Mbps

UART

5

SD/MMC Flash Card Ready

Yes

TCP/UDP/Telnet Modes

Yes

DHCP/Static IP modes

Yes

RS-232

Yes

RS-422/485

Yes

Physical Properties
Dimensions

4.40" x 3.90" x 1.20" (inches)

Module Properties
DC Input Voltage

7-24V DC

Temperature Range

Commercial (0°C to 70°C)

Metal Enclosure

Yes

Brand

NetBurner

Weight 5 lbs
