SBL2e

Name: SBL2e
Brand: NetBurner
Availability: InStock

SBL2e-100IR-3T Small Serial to Ethernet Server

$38.50 – $2,160.00

Access serial, analog, or digital I/O data over Ethernet!

NetBurner SBL2e Devices network-enable serial, analog, or digital I/O devices out of the box – no programming or development is required. The included virtual COM port Windows utility enables you to easily access serial devices located on a remote NetBurner device as if they were plugged into your own computer. The hardware is pre-programmed to convert your serial data to Ethernet, enabling communication with the serial device over a network or the Internet.

SB2Le Versions Available

Clear

SKU: N/A Categories: SBL2e, Serial to Ethernet Converters Tags: 1 Port Serial, 2 Port Serial, ADC, Breakout Board, Chip, DIO, Industrial Temp, Multifunction IO, No Enclosure, Serial to Ethernet

All of our hardware is RoHS compliant, covered by our
1 Year Warranty and Made in the USA.

Description

SBL2e Datasheet 15320 downloads

... (Read More)

Download

SBL2e CHIP & BOB Datasheet 6771 downloads

... (Read More)

Download

Product Posts

Customer Spotlight: NetBurner Enables MDI To Be In Two Places At Once

Wouldn’t it be nice to have a teleportation system? To step through a convenient portal and be at your destination instantly? If you’ve ever had

October 28, 2020

All About the RS-232 Serial Communication Protocol

What Is RS-232 Serial Communication Protocol and What Does It Do? It may come as a shock to some of you youngsters, but the RS-232

October 17, 2019

Get on the I2C Bus!

I2C: The Kindergarten Classroom of Protocols Have you ever found yourself daydreaming idly, “If only there was something out there that allowed me the luxury

September 27, 2017

giu-vicente-FMArg2k3qOU-unsplash-resize-opt

How to Create a Virtual Serial Port (COM Port)

What is a virtual COM port? A virtual COM port or a virtual serial port is an ideal solution when a legacy software application expects

September 26, 2017

Demystifying Serial Tunneling

In this article, we’ll explain Serial Tunneling and how this powerful capability uses Ethernet to connect two or more separated serial end-points. We’ll also introduce

August 23, 2017

Writing Your Own Serial Port Processing Function Using Callbacks

Photo Credit: Lobo Studio Hamburg Handling serial data streams is our bread and butter. In a majority of cases, NetBurner’s serial device platforms are ready

July 19, 2017

Not the right device? Compare all Ethernet to Serial Servers by feature.

Specifications

Performance and Memory

Processor Family	ColdFire
Clock Speed	50 MHz

Device Connectivity

Ethernet	10/100 Mbps
UART	2
Analog to Digital (ADC)	4
GPIO	10
I2C	1
TCP/UDP/Telnet Modes	Yes
DHCP/Static IP modes	Yes
RS-232	Requires external level shifter
RS-422/485	Requires external level shifter

Physical Properties

Dimensions	0.63" x 0.63" (inches) CHIP, 2.00" x 1.10" (inches), 2.05" x 1.54" (inches) BOB

Module Properties

DC Input Voltage	3.3V @ 300mA typical
Temperature Range	Industrial (-40°C to 85°C)
Brand	NetBurner

SB2Le Versions Available	SBL2E-100IR (2 Serial & 1 RJ-45), SBL2E-200IR (2 Serial & 10-pin header), SBL2E-BOB-200IR Break Out Board, SBL2ECHIP-236IR (Chip Only), SBL2EX-100IR (1 Serial & 1 RJ-45), SBL2EXA-100IR (Multi-function IO, 2 Serial & 1 RJ-45)

Weight	.1 lbs

Documents and Downloads

SBL2e Documents

SBL2e Serial Tunneling 6083 downloads

... (Read More)

Download

SBL2e Dual Serial to Ethernet User's Manual 5623 downloads

... (Read More)

Download

SBL2e Latest Factory Application Firmware 3732 downloads

... (Read More)

... (Read More)

... (Read More)

Virtual COMM Port Driver (Windows 7 - 10) 88040 downloads

Download the popular Virtual COMM Port Driver for use with NetBurner modules. Add... (Read More)

Download

Application Notes

SBL2e Pin I/O Class 5003 downloads

... (Read More)

Download

Power Over Ethernet 7972 downloads

... (Read More)

Download

Development Kit

Serial to Ethernet Development Kit

Powerful Hardware and Software that Makes Building Applications Easier

In addition to the platform hardware, development kits include software and technical support. What makes NetBurner development kits different?

Every component including the hardware, software and developer tools is designed by NetBurner to work together seamlessly.
All development kits include world-class technical support.
Create and deploy applications from your Mac OS X 10.5+ or Windows XP/Vista/7 PC .
Get hands-on familiarity with the NetBurner platform by studying, building, and modifying ample source code examples.
Device applications can be written in C/C++ (or assembly language).
Includes Eclipse based IDE with graphical debugger. If you prefer using the command line, we include several source code examples with makefiles.
Includes royalty-free TCP/IP Stack, web server, Real-time OS (RTOS), and more. Although our software stack has a small memory footprint, you can include only what you need to free up additional memory or processing power.

To learn about the standard development kit features and software, please click on the buttons below.

Reviews

There are no reviews yet.

Be the first to review “SBL2e”

You must be logged in to post a review.

Quantity	Bulk Purchase Pricing
1 - 99	$39.50 Per Item
100 - 499	$38.56 Per Item
500 - 999	$35.25 Per Item
1000 or more	$31.95 Per Item

Quantity	Bulk Purchase Pricing
1 - 5	$2,160.00 Per Item
6 - 11	$2,070.00 Per Item
12 - 55	$1,935.00 Per Item

Quantity	Bulk Purchase Pricing
1 - 99	$38.50 Per Item
100 - 499	$37.50 Per Item
500 - 999	$34.25 Per Item
1000 or more	$30.99 Per Item

SBL2e

Description

SBL2e Datasheet 15320 downloads

SBL2e CHIP & BOB Datasheet 6771 downloads

Product Posts

Customer Spotlight: NetBurner Enables MDI To Be In Two Places At Once

All About the RS-232 Serial Communication Protocol

Get on the I2C Bus!

How to Create a Virtual Serial Port (COM Port)

Demystifying Serial Tunneling

Writing Your Own Serial Port Processing Function Using Callbacks

Related

Specifications

Documents and Downloads

SBL2e Serial Tunneling 6083 downloads

SBL2e Dual Serial to Ethernet User's Manual 5623 downloads

SBL2e Latest Factory Application Firmware 3732 downloads

SBL2e Revision History 3788 downloads

SBL2e Quick Start Guide 7184 downloads

SBL2e Evaluation Kit Quick Start Guide 5776 downloads

SBL2e Schematic 4441 downloads

SBL2e Mechanical Diagram (200 Version) 4129 downloads

SBL2e Mechanical Diagram (100 Version) 4102 downloads

SBL2e Datasheet 15320 downloads

Adding an Ethernet RJ-45 Connector 4391 downloads

macOS Big Sur PCN 13346 downloads

Custom Baud Rates 13148 downloads

Software and Protocols: Network Single-Chip 5701 downloads

uCOS Library 17205 downloads

SerialDownload Pdf 21354 downloads

Writing Assembly Code for the NetBurner Coldfire Platform 17838 downloads

Network Programming Guide 7703 downloads

Comparing RTOS to Infinite Loop Designs 16326 downloads

USB Virtual COMM Port Driver 6005 downloads

Network Security Libraries 19597 downloads

Network Programming Examples 12747 downloads

Network Programming Guide 12776 downloads

MTTTY Download 60983 downloads

MTTTY Serial Terminal 20518 downloads

AutoUpdate (Windows) 19101 downloads

AutoUpdate (OS X) 13685 downloads

IP Setup 45376 downloads

Virtual COMM Port Driver (Windows 7 - 10) 88040 downloads

SBL2e Pin I/O Class 5003 downloads

Power Over Ethernet 7972 downloads

Related

Development Kit

Serial to Ethernet Development Kit

Powerful Hardware and Software that Makes Building Applications Easier

Related

Reviews

You may also like…

SBL2e Development Kit

SBL2e BOB Development Kit

SBL2e XA Development Kit

SBL2e X Development Kit

SBL2e Evaluation Kit

Related products

SB70 Serial to Ethernet Server

SB800 EX 2 Port Serial to Ethernet Server – SSL/TLS

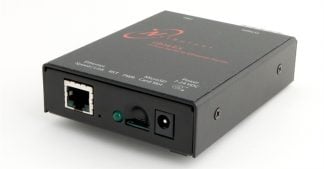

CB34 EX
