SB72 Serial to Ethernet Server

$169.00

NetBurner’s Secure Serial to Ethernet Servers network-enable serial devices out of the box – no programming or development is required. The hardware is pre-programmed to convert your serial data to Ethernet, enabling secure communication with the serial device over a network or the Internet.

This product is now in its End of Life stage. Please consider SB70LC-100IR as a suitable replacement. For more information, please see the MCF5272 End of Life Notice.

*** NON-CANCELLABLE / NON-RETURNABLE ***

Low Stock

QuantityBulk Purchase Pricing
1 - 99$169.00 Per Item
100 - 199$159.00 Per Item

SKU: SB72-301IR Category: Tags: ,

Description

Icon

MCF5272 End Of Life Notice 0.00 KB 4999 downloads

...

Not the right device? Compare all Ethernet to Serial Servers by feature.

Specifications

Performance and Memory
Processor Family

ColdFire

Clock Speed

62.5 MHz

Flash

512 KB

SDRAM

8 MB

Device Connectivity
DHCP/Static IP modes

Yes

Ethernet

10/100 Mbps

RS-232

Yes

RS-422/485

Yes

SPI

1

TCP/UDP/Telnet Modes

Yes

UART

2

Physical Properties
Dimensions

3.25" x 2.00" (inches)

Module Properties
DC Input Voltage

5V @ 480mA

Temperature Range

Industrial (-40°C to 85°C)

Brand

NetBurner

Weight .1 lbs

Documents and Downloads

SB72 Documents

No downloads found!

    Development Kit

    Icon

    Runtime Libraries 0.00 KB 9325 downloads

    ...
    Icon

    Reference Guide: NetBurner PC Tools 0.00 KB 14372 downloads

    ...
    Icon

    Legacy SB72 Monitor Recovery 0.00 KB 750 downloads

    ...
    Icon

    Freescale Coldfire MCF5272 User's Manual 0.00 KB 1390 downloads

    Freescale Coldfire MCF5272 User's Manual provides OEM information pertaining to NetBurner's...

    Deployment Tools

    No downloads found!

      Application Notes

      No downloads found!

        Development Kit

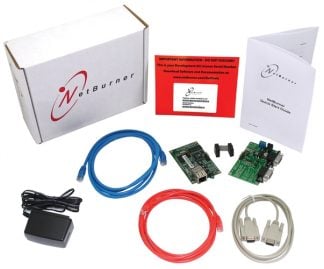

        Serial to Ethernet Development Kit

        Desktop Software

        Powerful Hardware and Software that Makes Building Applications Easier

        In addition to the platform hardware, development kits include software and technical support. What makes NetBurner development kits different?

        • Every component including the hardware, software and developer tools is designed by NetBurner to work together seamlessly.
        • All development kits include world-class technical support.
        • Create and deploy applications from your Mac OS X 10.5+ or Windows XP/Vista/7 PC .
        • Get hands-on familiarity with the NetBurner platform by studying, building, and modifying ample source code examples.
        • Device applications can be written in C/C++ (or assembly language).
        • Includes Eclipse based IDE with graphical debugger. If you prefer using the command line, we include several source code examples with makefiles.
        • Includes royalty-free TCP/IP Stack, web server, Real-time OS (RTOS), and more. Although our software stack has a small memory footprint, you can include only what you need to free up additional memory or processing power.

        To learn about the standard development kit features and software, please click on the buttons below.
