SBL2e Development Kit

$299.00

The NetBurner Single Chip platform is an extremely cost effective platform for simple applications, but this comes at a cost in features and development time. Unlike the standard NNDK applications where one can expect to add significant features to the examples, the SBL2E examples are close to the limit of what can be done with the platform. You can modify the applications, but if you add features also expect to remove features.

In Stock

SKU: NNDK-SBL2E-KIT Categories: , Tags: ,

Description

Icon

SBL2e Datasheet 921.24 KB 48626 downloads

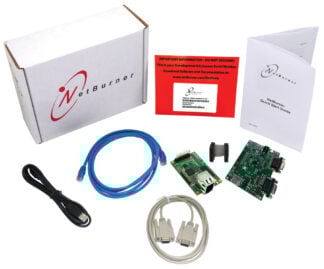

Included in the Package

  • 1 Platform Hardware
  • 1 Adapter Board
  • 1 Quick Start Guide
  • 1 NNDK Card with Platform Serial Number
  • 1 USB Cable
  • 1 RJ-45 Ethernet Jack
  • 1 Serial Cable
  • 1 Blue CAT5 Patch Cable
  • 1 Red CAT5 Cross-over Cable
  • 1 Year of Software and Tool Updates
  • 6 Months of Technical Support



Ready to build products?

Take a look at volume pricing for the SBL2e. Click here for additional product information

NOTE: These kits are USB powered (with the included USB cable), but can also be powered by a power adapter which can be purchased here: International Power Adapter or a US Power Adapter

Specifications

Performance and Memory
Processor Family

ColdFire

Clock Speed

50 MHz

Device Connectivity
Analog to Digital (ADC) Channels

4

DHCP/Static IP modes

Yes

Ethernet

10/100 Mbps

GPIO

10

I2C

1

RS-232

Requires external level shifter

RS-422/485

Requires external level shifter

TCP/UDP/Telnet Modes

Yes

UART

2

Module Properties
Dimensions

2.00" x 1.10" (inches)

DC Input Voltage

3.3V @ 300mA typical

Temperature Range

Industrial (-40°C to 85°C)

Brand

NetBurner

More
Weight

2 lbs
